Product Description

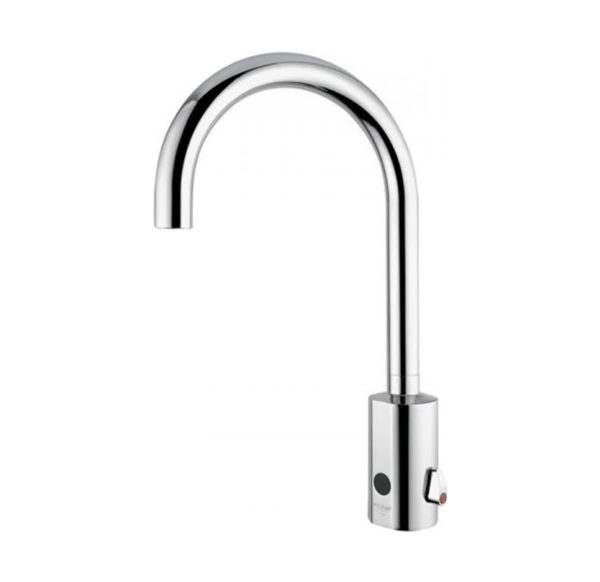

Electronic Infrared Detection Basin Mixer with fixed spouts, applications and advantages.
Electronic Infrared Detection Basin Mixer with fixed spouts are fitted to domestic hot water installations (sinks) and allow action on a desired temperature.
Depending on the model, the faucet will be battery operated and will be equipped with an infrared sensor.
- Chromed brass body
- Chromed brass fixed spout
- Bi-stable solenoid valve 6 V (internal)
- Infra-red sensor
- 6 V CRP2 lithium battery (internal)
- Stainless steel braided 1/2” flexible hoses and check valves
- Flow rate 6 l/min
- Operating pressure : Min 1 – max 8 bar
- Water inlet temperature : 5 – 70 °C
Power supply : Lithium battery 6 V (included)
Additional information
| Models | BS02505, BS02505/R |
|---|---|
| Product provider | BESTIDRAL |
| Main body | Chromed brass body |
| Activation | Infra-red sensor with presence detection function |
| Power supply | Lithium battery 6 V (included) |
| Battery life cycles | 220.000 cycles |
| Flow rate | 6 l/min |
| Operating pressure | Min 1 – max 8 bar |
| Water inlet temperature | 5 – 70 °C |
| Self-opening | Every 24 hours since the last activation |
| Vandal proof safety | Self-closing after 60 seconds of continuous flow |
| Low battery safety | Low battery led indicator: in case of exhausted battery the mixer is kept closed |
| Other Model | BS02504/R : Main powered 230 V |
| Usage / Application | Communities Hygiene |
